Hikvision DS-KIS202 Video Door Phone Kit (7-Inch Indoor Monitor + Outdoor Door Station)

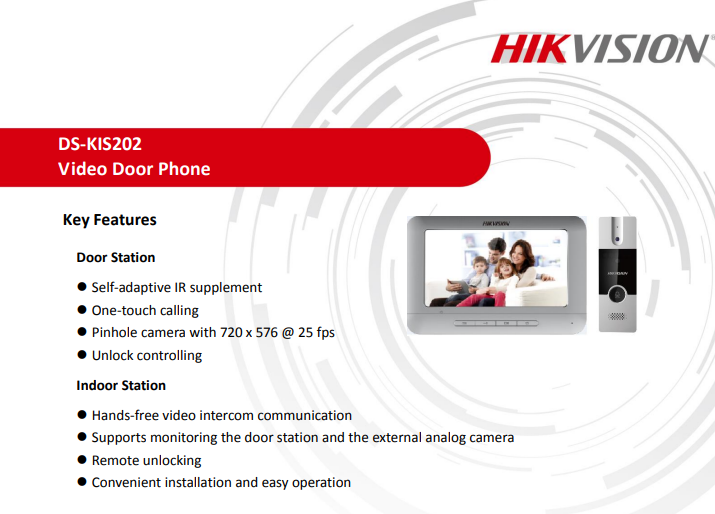

⭐ Key Features

Door Station

• Self-adaptive IR supplement

• One-touch calling

• Pinhole camera with 720 × 576 @ 25 fps

• Unlock control

Indoor Station

• Hands-free video intercom communication

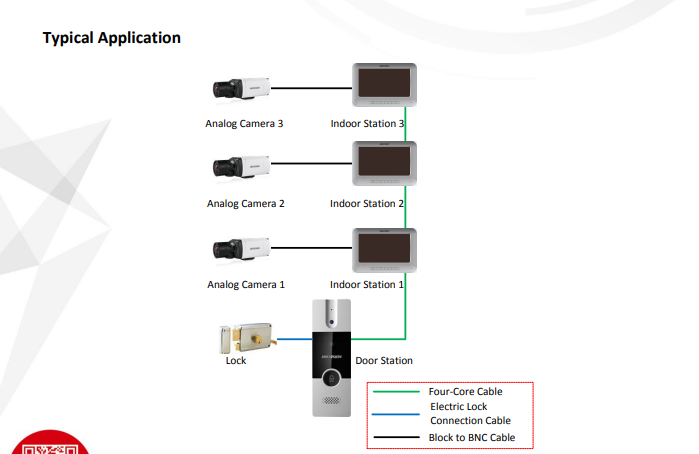

• Supports monitoring the door station and analog cameras

• Remote unlocking

• Easy installation & operation

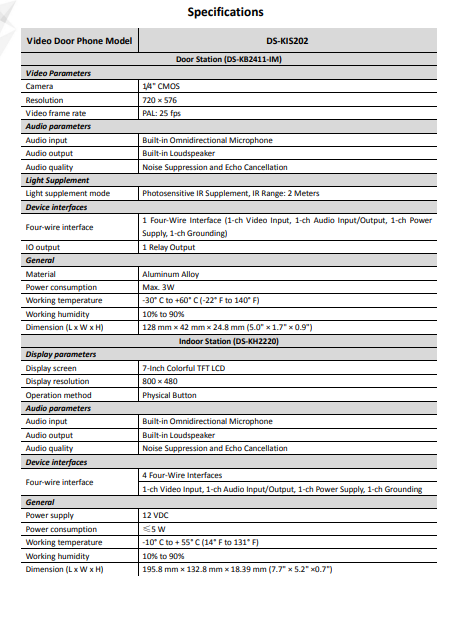

📌 Door Station / Video Parameters

• Resolution: 720 × 576

• Video Frame Rate: PAL 25 fps

• Camera: 1/4" CMOS

📌 Door Station / Audio

• Audio Input: Built-in Omnidirectional Microphone

• Audio Output: Built-in Loudspeaker

• Audio Quality: Noise Suppression & Echo Cancellation

• IR Supplement Range: 2 meters

📌 Device Interfaces

• 1 Four-Wire Interface (Video, Audio, Power & Grounding)

• 1 Relay Output

📌 Door Station / General

• Material: Aluminum Alloy

• Power: 12VDC

• Power Consumption: Max. 3W

• Working Temperature: -30°C to +60°C

• Working Humidity: 10%-90%

• Dimensions: 128mm × 42mm × 24.8mm

🖥 Indoor Station / Display

• Display: 7-inch TFT LCD

• Resolution: 800 × 480

• Operation Method: Physical Button

📌 Indoor Station / General

• Power: 12VDC

• Power Consumption: ≤5W

• Working Temperature: -10°C to +55°C

• Dimensions: 195.8mm × 132.8mm × 18.39mm
