Hikvision DS-KIS202T Video Intercom Kit (7-Inch Indoor Monitor + 1080p Door Station)

⭐ Key Features

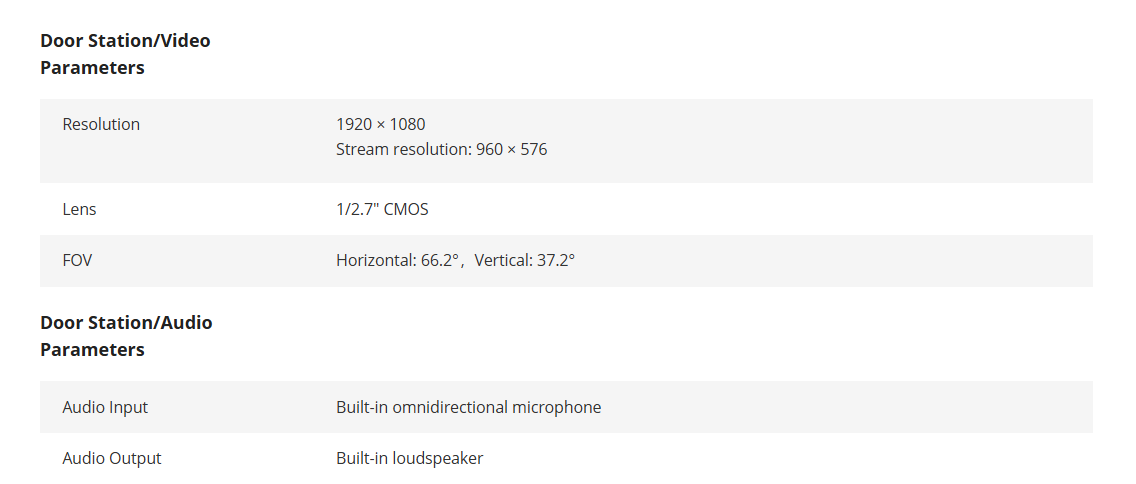

Door Station / Video Parameters

• Resolution: 1920 × 1080

• Streaming Resolution: 960 × 576

• Lens: 1/2.7″ CMOS

• Field of View: Horizontal 66.2°, Vertical 37.2°

Door Station / Audio Parameters

• Audio Input: Built-in omnidirectional microphone

• Audio Output: Built-in loudspeaker

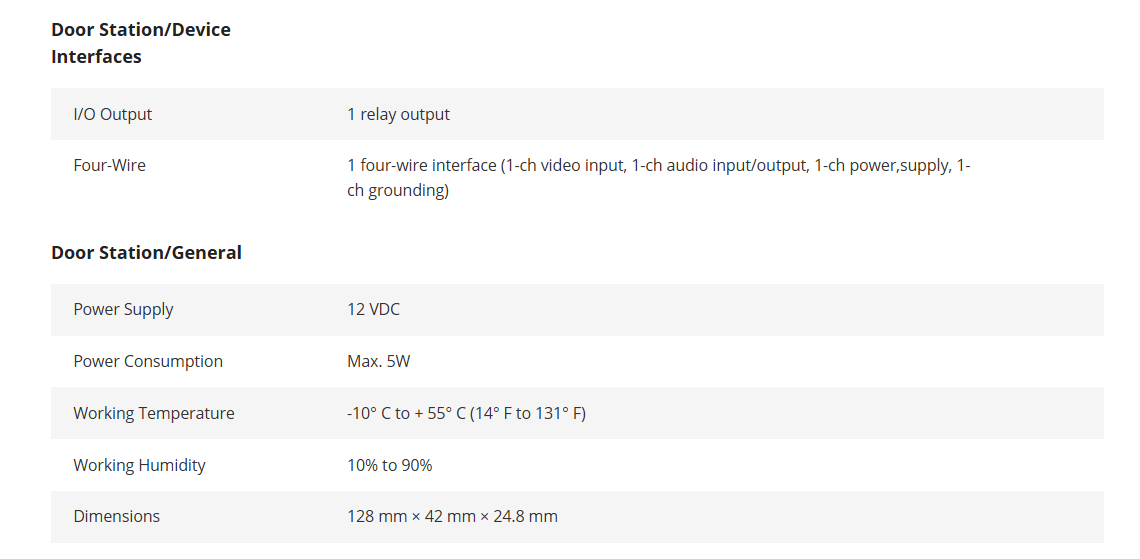

Door Station / Interfaces

• I/O Output: 1-ch relay output

• Four-Wire Interface:

  • 1-ch video input

  • 1-ch audio input/output

  • 1-ch power supply

  • 1-ch grounding

Door Station / General

• Power Supply: 12VDC

• Max. Consumption: 5W

• Working Temperature: −10°C to +55°C

• Working Humidity: 10%–90%

• Dimensions: 128 × 42 × 24.8 mm

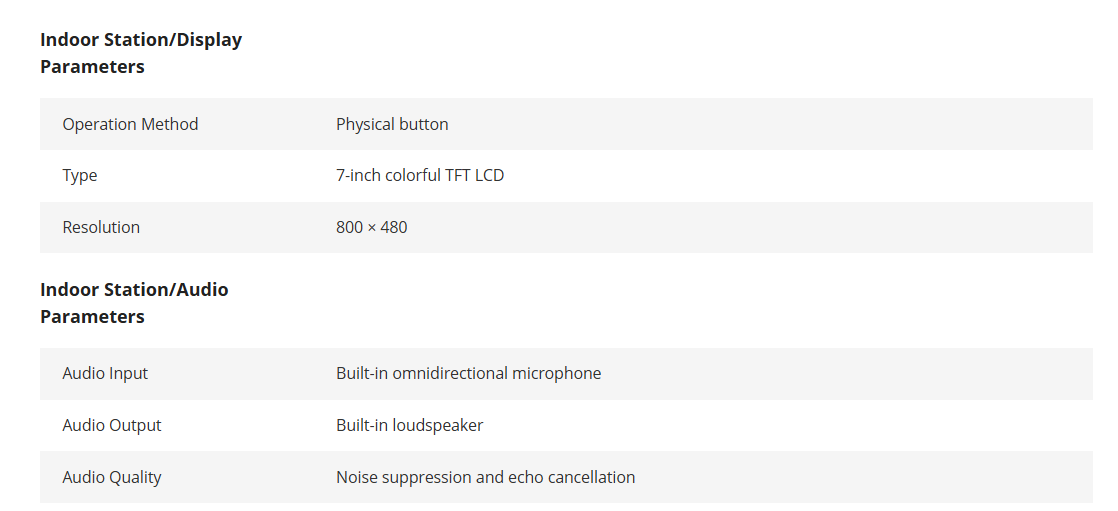

Indoor Station / Display

• Operation Method: Physical Button

• Screen Type: 7-inch Colorful TFT LCD

• Resolution: 800 × 480

Indoor Station / Audio

• Audio Input: Built-in omnidirectional microphone

• Audio Output: Built-in loudspeaker

• Audio Quality: Noise suppression & echo cancellation

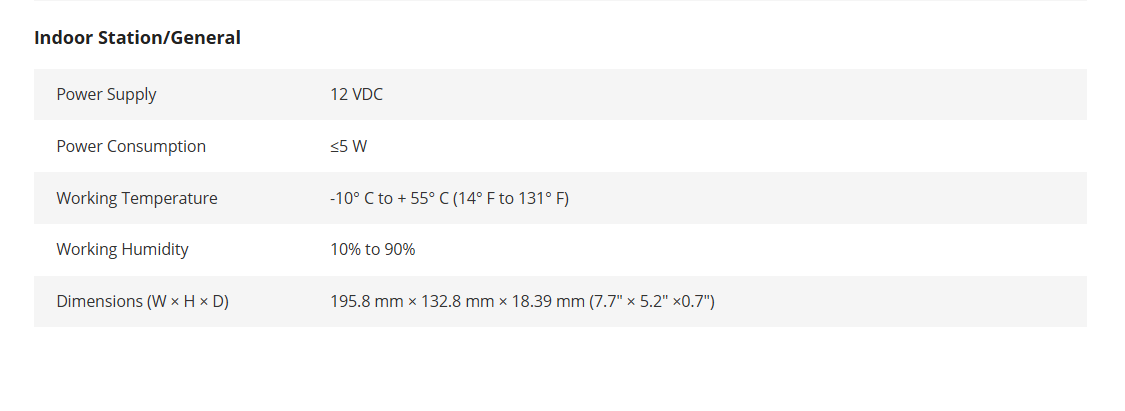

Indoor Station / General

• Power Supply: 12VDC

• Power Consumption: ≤5W

• Working Temperature: −10°C to +55°C

• Dimensions: 195.8 × 132.8 × 18.39 mm
