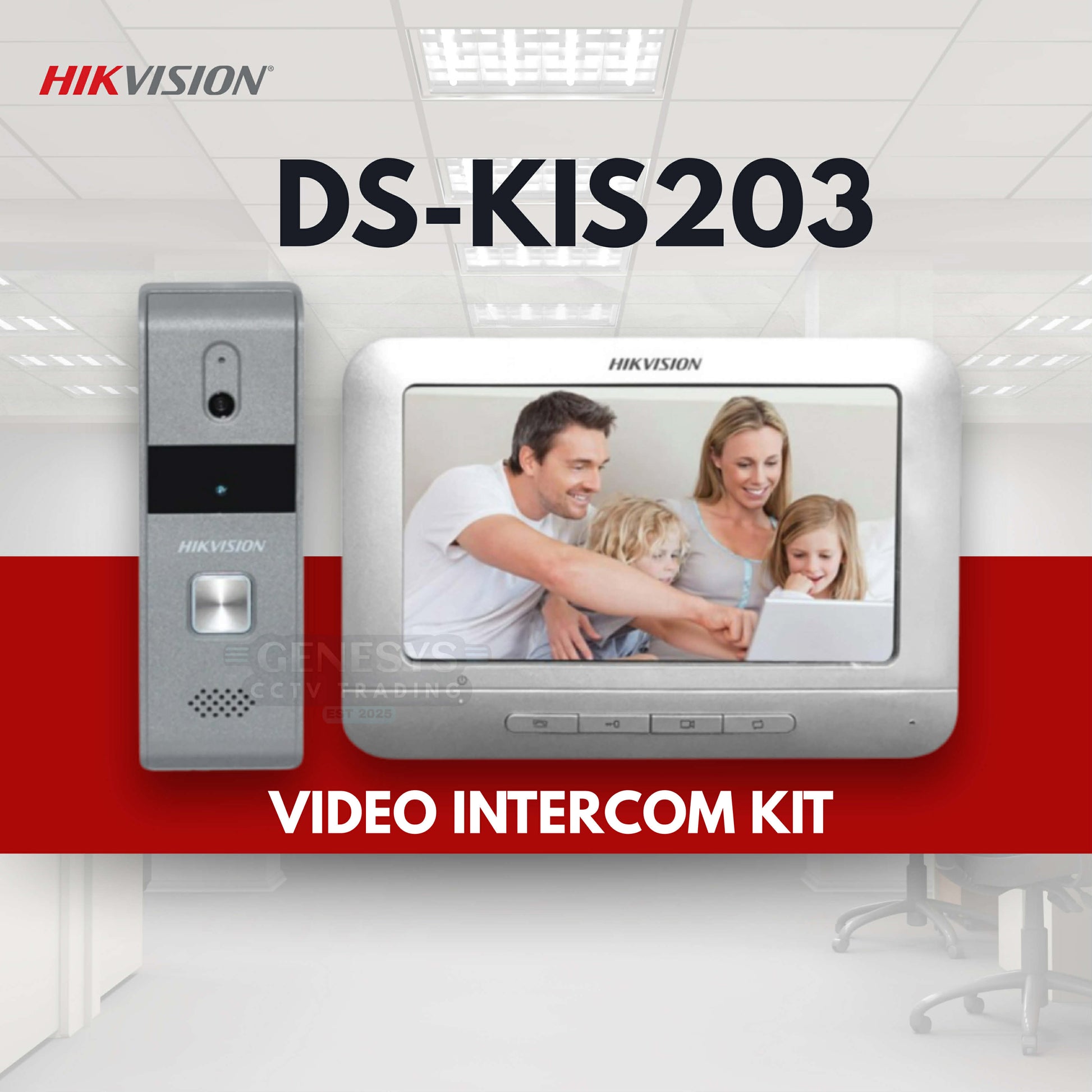

Hikvision DS-KIS203 Video Intercom Kit (7-Inch Indoor Monitor + Door Station)

Complete Video Intercom Kit for Home & Office Security

The Hikvision DS-KIS203 kit includes a 7-inch indoor touchscreen monitor and a durable outdoor door station. It provides two-way communication, remote unlock, and clear video and audio quality for home, apartment, or building entrances.

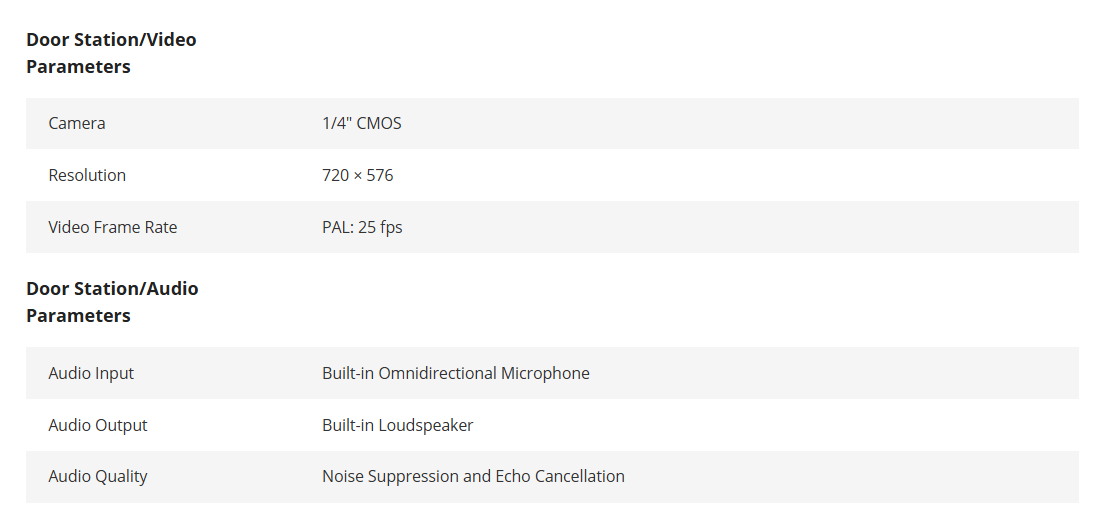

Door Station / Video

• Camera: 1/4" CMOS

• Resolution: 720 x 576

• Video Frame Rate: PAL @ 25 fps

Door Station / Audio

• Audio Input: Built-in Omnidirectional Microphone

• Audio Output: Built-in Loudspeaker

• Audio Quality: Noise Suppression & Echo Cancellation

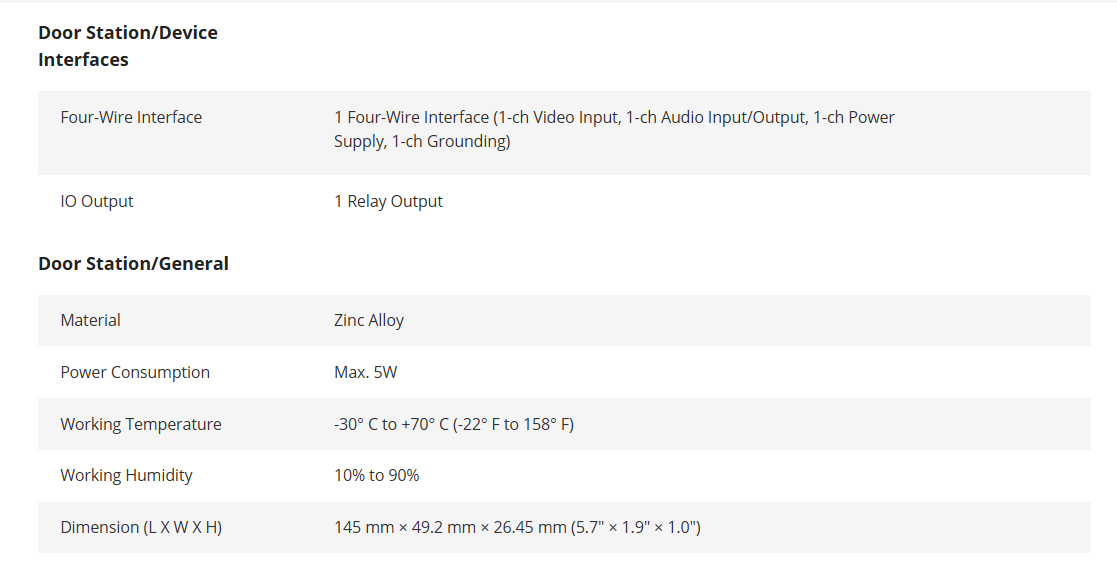

Door Station / Interfaces

• 1 Four-Wire Interface (Video, Audio, Power, Ground)

• IO Output: 1 Relay Output

Door Station / General

• Material: Zinc Alloy

• Power Consumption: Max. 5W

• Working Temperature: -30°C to +70°C

• Working Humidity: 10% to 90%

• Dimensions: 145 mm x 49.2 mm x 26.45 mm

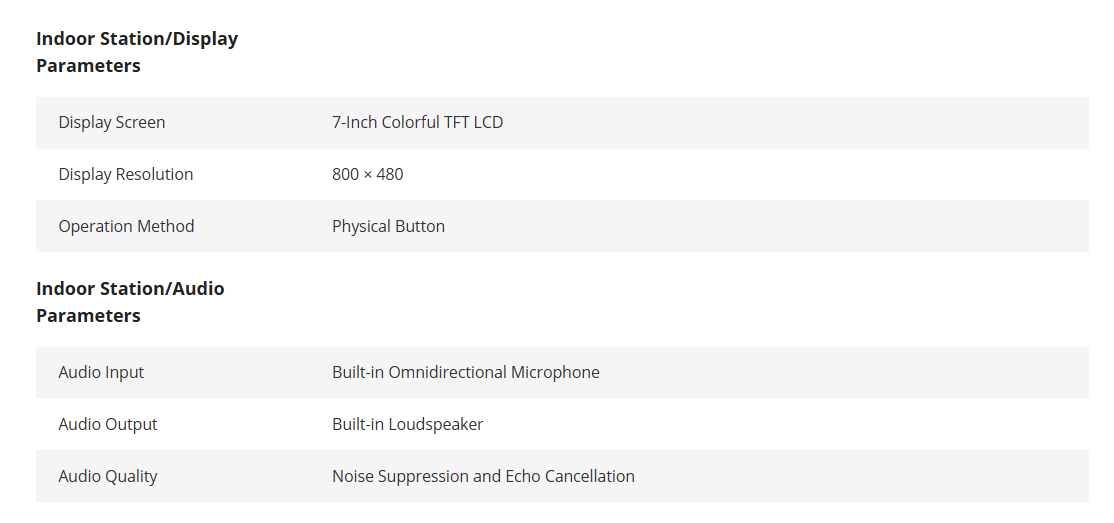

Indoor Station / Display

• Screen: 7-Inch Color TFT LCD

• Resolution: 800 × 480

• Operation Method: Physical Button

Indoor Station / Audio

• Audio Input: Built-in Omnidirectional Microphone

• Audio Output: Built-in Loudspeaker

• Audio Quality: Noise Suppression / Echo Cancellation

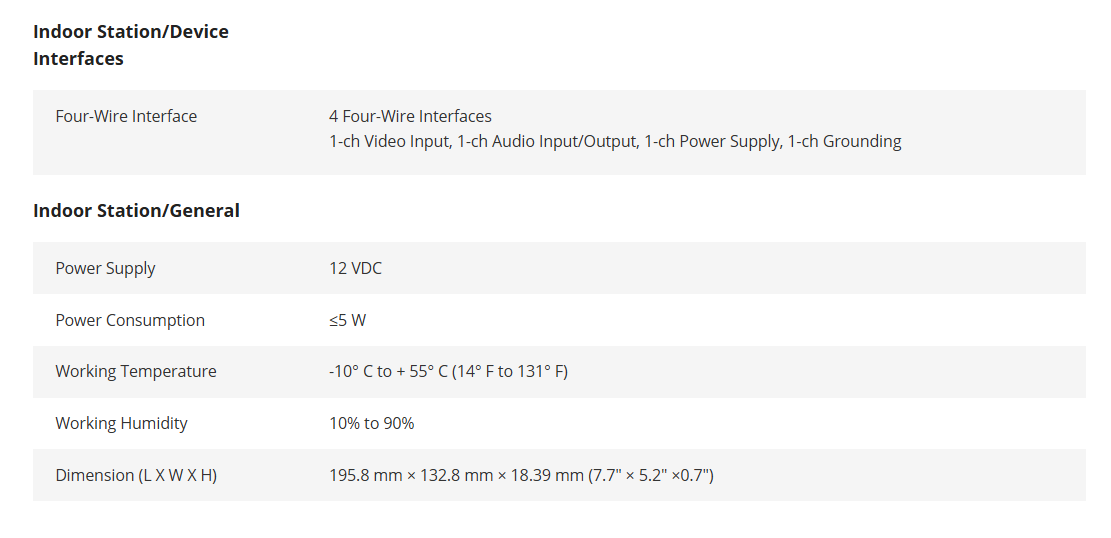

Indoor Station / Interfaces

• 4 Four-Wire Interfaces

• 1-ch Video Input / Audio / Power Supply / Grounding

Indoor Station / General

• Power Supply: 12 VDC

• Power Consumption: ≤ 5W

• Working Temperature: -10°C to +55°C

• Dimensions: 195.8 x 132.8 x 18.39 mm
