Hikvision DS-KIS204 Video Intercom Kit VIDEO DOOR PHONE

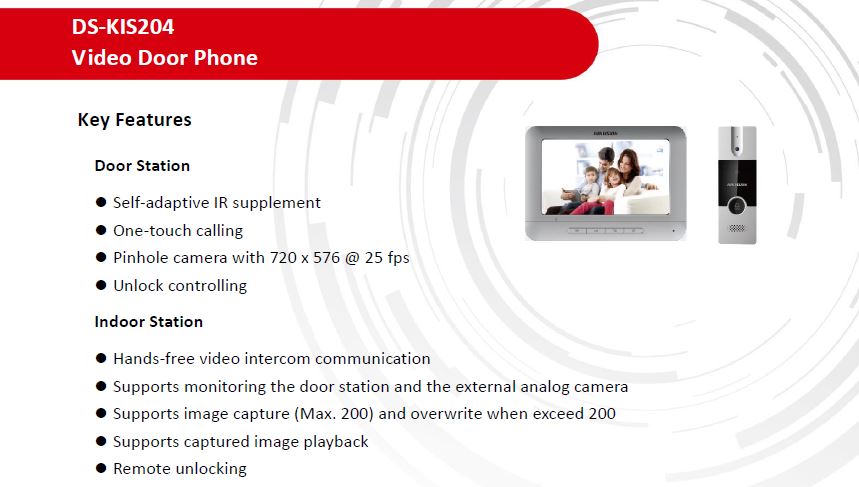

📌 Key Features

Door Station

• Self-adaptive IR supplement

• One-touch call button

• Built-in pinhole camera (720 × 576 @ 25fps)

• Remote unlock control

Indoor Station

• Hands-free video communication

• Supports monitoring the door station and external camera

• Supports up to 200 picture captures (auto overwrite)

• Image playback supported

• Remote unlocking

📷 Camera & Video Specifications

Door Station

• Camera: 1/4" CMOS

• Resolution: 720 × 576

• Frame rate: PAL: 25fps

• IR Range: 2 meters

Audio

• Built-in microphone & speaker

• Noise suppression & echo cancellation

Interface

• 4-wire communication

• 1-ch video input, 1-ch audio, and power

General

• Material: Aluminum alloy

• Power: Max 3W

• Working temp: -30°C to +60°C

• Size: 128 × 42 × 24.8mm

🖥 Indoor Monitor Specifications

• 7-Inch TFT LCD display

• Resolution: 800 × 480

• Button controls

• Power: 12V DC

• Power consumption: ≤5W

• Operating temp: -10°C to +55°C

• Size: 195.8 × 132.8 × 18.39mm

📦 Package Includes

• 1x Outdoor Door Station

• 1x Indoor Monitor

• 4-wire cable connections

• Mounting accessories

✔️ Recommended for

• Home

• Villa

• Small office

• Apartment door entry
